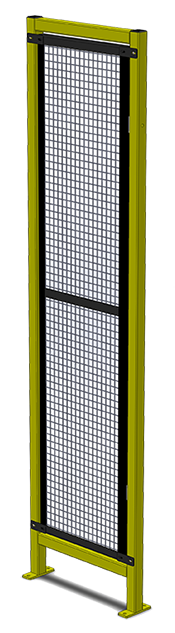

Frame & Panel
Frame & Panel type system perimeter guarding is easy to plan, build, and install.
- Assemblies are built in one-inch size increments to simplify and speed production.
- Openings can be placed anywhere.
- Panels are fastened to the face of each frame with 6mm button head cap screws.
- The height and width of the assemblies are adaptable to the requirements of the job.
- Erecting the perimeter guard is simple and straightforward.
- Panels are pre-assembled—no cutting or fitting required!
Frame & Panel system is strong, rigid, and durable.
- Square steel tube frames are bolted to the floor (and to each other) to make a rigid wall.
- Screwing the panel to the frame adds quite a bit more strength to the guarding system.
- Our high quality powder coat finish is tough against chemicals, heat, and abrasion.
Frame & Panel system provides a solution for every requirement.
- Full panels - Partial panels - Split panels - Custom panels - Special fittings - Inside & outside corners - High sweeps
- Doors of all types: Swing doors - Sliding doors - Overhead rolling doors – Double doors – Bifold doors
Frames
A rigid steel construction of high quality welded steel tube.
Specs
2" x 2" - 11 gauge steel tube
.375" thick feet - inline - corner - angle
6” sweep clearance
Polyethylene finish tube plugs (top of tubes)
12 mm socket head cap screw bolted connections
Standard widths sized in even-inch increments from 12”-53” standard widths
Standard heights: 60" - 66" - 72" - 78" - 84" - 90" - 96" - 102"
Panels
Welded, shop formed angle with direct mounting tabs.
Specs
1.5" x 1.5" - 12 gauge shop-formed angle
1.5" x 3.25" - 12 gauge slotted mounting tabs
6mm button head cap screws
