The Post & Panel system is an economical design that relies on the panel itself to create structure.

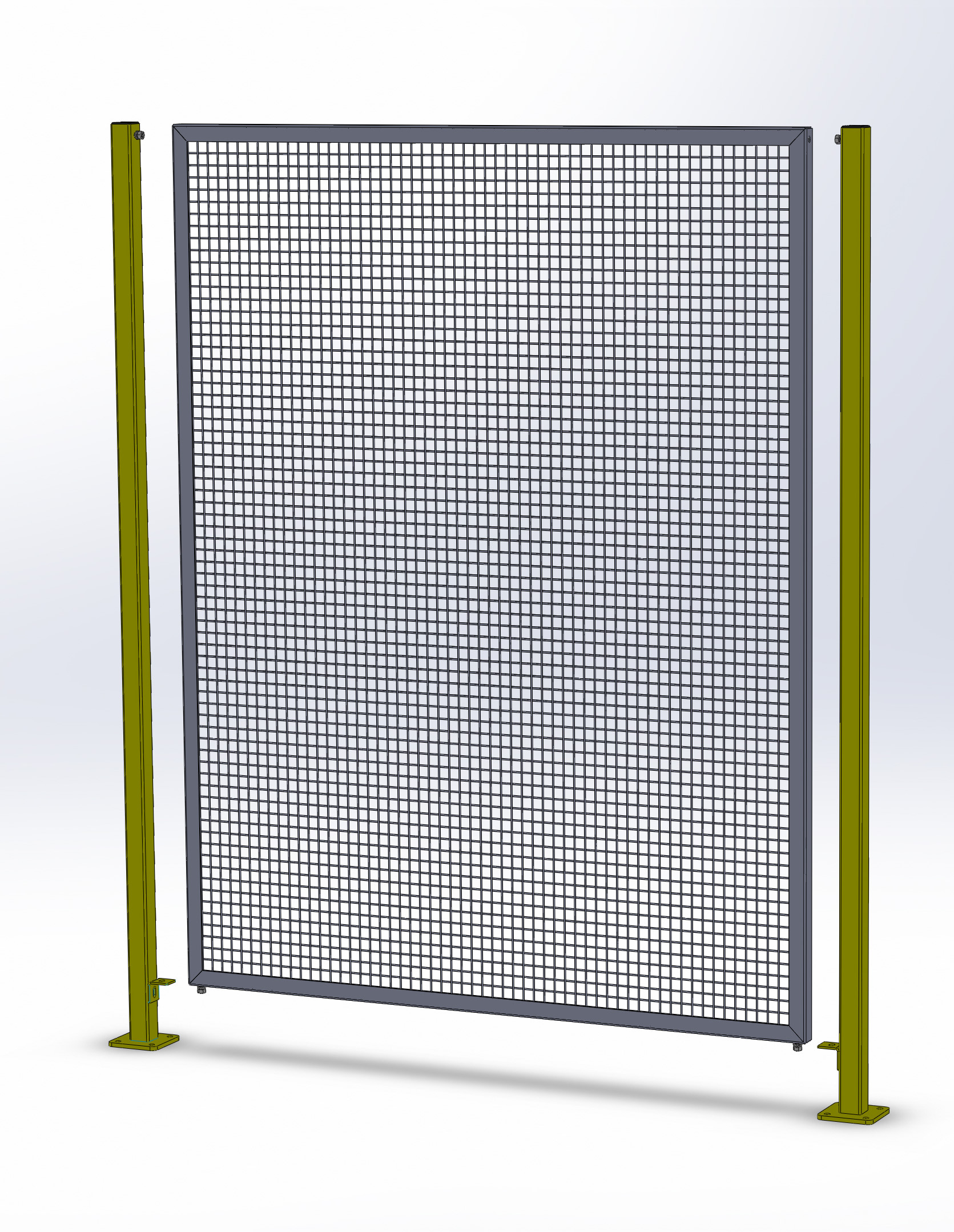

• A welded panel is bolted directly to a post...then another post… then another panel is attached, and so on
• Compared to Frame & Panel system cost is reduced significantly by reduction in material and labor.  Yet the system is strong, easy to plan and easy to assemble.
• The system is adaptable to almost any situation.

Simple design-Easy installation.

• Typical installations use only three types of posts —Corner Post-Middle Post-End Post. Occasionally a 3-Way Post is called for.
• Panels sit on slotted brackets at the bottom and bolt directly to the post at the top.
• Angles are handled with special mounting tabs and brackets.
• All panels arrive completely assembled—no cutting or fitting required.

Posts

Steel tube with foot bolted to floor

Specs

• 2 x 2 x 11 gage sq. tube.
• Feet: .375 x 5 x 5 HRPO steel .
• 12 mm system holes at top for attaching panels.
• 10 mm socket head cap screws for attaching panels.
• 6” floor sweep standard

Panels

Welded, shop-formed angle with mounting slots for bolting directly to posts

Specs

1.5 X 1.5 x 12 gage shop-formed angle.
Infill:

• Welded wire mesh—1 x 1 x .118
• Expanded metal—1/2”-#13
• Polycarbon--.22 clear

Standard widths:  12”-60”--even-inch increments
Standard heights: 12”-120”--even inch increments

Doors and Gates

Several types of doors are used in the Post & Panel system:

1. Swing Door-Welded steel tube door jamb with welded door frame with welded panels that attach directly to the frame with M6 screws. Heavy duty steel hinges are 3 1/2 x 3 1/2 x .150 thick welded to jamb and frame and have removable pins. This door will fit tight and keep alignment even under heavy use.
2. Sliding Door-Welded steel tube frame with roller tracks and rollers with hanger bolts. These can be single or double wide.
3. Swing Gates-When the fence is too low for a header (under 84" height); or when a header would interfere with access (for loading with a forklift, for example); the header is omitted and the door is refered to as a gate or Total Access.
4. Sliding Gates-Allow total access by using heavy duty drawer slides to carry the load.

Finish

Powder coat:

• Safety yellow-standard for frames.
• Black-standard for the panel.
• Custom colors are no problem.
• Wet paint finish optional
